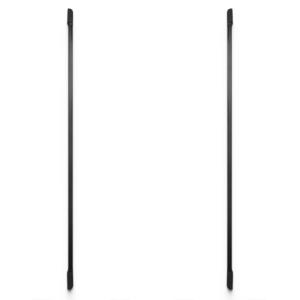

Safety Light Curtain Anti Pinch Photocell 1m 4 Beams for Industrial PVC Fast Door

1. Single Beam Blocking: When a single beam in the light curtain is blocked, it needs to be continuously blocked for 2 seconds before an output signal is generated. This design aims to prevent frequent triggering caused by the brief passage of small objects and effectively reduces false alarms.
2. Multiple Beams Blocking: As soon as two or more beams are blocked, the relay signal will be output immediately to ensure a prompt response to potential dangerous situations where larger objects or human bodies may intrude, thereby promptly stopping the operation of related equipment and fully ensuring the safety of personnel and equipment.

1. Rich Variety: Currently, there are 4-beam options of 48cm, 1-meter, 2-meter with 4 beams, 8 beams, 16 beams, and 32 beams.
2. Customization: Can be customized according to the specific requirements of customers.

1. Waterproof Rating: Achieves IP65, enabling stable operation in humid environments.
2. Low-temperature Operation: Can work normally in a low-temperature environment of -30°C, adapting to various extreme conditions.

Infrared beam sensors operate through a systematic process involving the emission, propagation, interaction, reflection, and reception of infrared radiation. Here's a detailed look at their working:

1. Infrared Emission: The sensor initiates the process by emitting an infrared beam via an infrared emitter.

2. Beam Propagation: The emitted beam travels along a predefined path, creating an invisible detection line.

3. Target Interaction: When an object crosses this beam, it interacts with the infrared light, either reflecting, absorbing, or scattering it.

4. Reflection or Scattering: The sensor's infrared receiver then captures the reflected or scattered infrared light from the object.

5. Signal Processing: This captured signal is processed to analyze parameters such as strength and frequency, determining the presence, distance, or other relevant details of the object.

6. Output Results: The processed data is outputted as electrical or digital signals, which can trigger actions, alarms, or data logging.

Product Overview:

The Safety Light Curtain provides comprehensive protection for industrial doors, barrier gates, and home security applications. Our standard model, which is 1 meter tall and includes 4 infrared beams, offers exceptional functionality and reliability.

Key Features:

1. Durability: Designed to endure intense light interference and challenging outdoor environments, featuring an IP65 waterproof rating for superior resilience.

2. Detection Range: Offers a detection range exceeding 15 meters, ensuring extensive coverage.

3. Functionality:

   • Industrial Door Protection: Automatically reopens the door upon detecting an obstruction during closure, ensuring safety.
   • Barrier Gate Safety: Ideal for barrier gates, it promptly reopens upon detecting a person or vehicle during closure.
   • Home Security: Enhances security by triggering a relay output upon detecting unauthorized entry, effectively deterring intruders.

Customization Options:

Our Safety Light Curtain Sensor can be customized in various lengths and beam configurations to meet specific requirements.

Achieve enhanced peace of mind and safety with our Safety Light Curtain Sensor. Trust our reliable and customizable solutions to effectively protect your premises.

Specification

Wiring Definition

Size

Installation

How to install JUTAI Infrared Curtain Photocell? We have also listed the installation drawings step by step for customers' reference, making the installation simple, easy and fast;

Package

Before introducing the functional advantages of our products, we also present the detailed product packaging details of Jutai infrared curtain photocell to you.

Advantages

JUTAI Curtain Photocell Advanced Function we list as followings

Company Profile

JUTAI is a distinguished manufacturer of Motion Sensor Photoelectric Sensors, celebrated for its comprehensive integration of research, development, production, sales, and distribution. Our foundation is built on innovation and an unwavering commitment to quality, aimed at delivering exceptional solutions to our valued customers. As we advance in establishing our brand, we strive to be your trusted production partner in your endeavor to build and promote your own brand.

With over a decade of experience in research and production, we have accumulated extensive expertise in wireless communication technology, automatic door sensors, and wholesale distribution of barrier gates. Our core product portfolio includes a wide range of offerings, such as:

• Automatic door sensors
• Microwave radar sensors for automatic doors
• Infrared sensor series
• Loop detectors
• Short, medium, and long-range wireless RFID card readers
• Barrier gates
• Parking barrier gates

Every JUTAI hardware product is meticulously engineered to seamlessly integrate with access control systems, providing comprehensive solutions for access control, parking management, and parking guidance systems.
